Power

OBSOLETE-NO LONGER IN PRODUCTION

(Note-Power Strip Vertical Mount Under Development/Testing Call For Information)

Power Strip-Horizontal Mount

Front

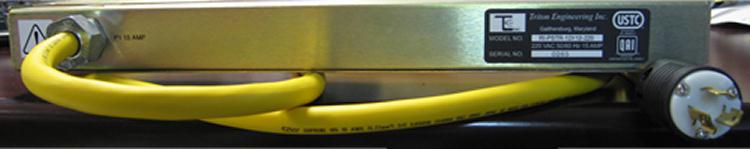

Back

Power Strip Features

	Physical: 19" Rack Mount With 1U Height
	Power: 220V 15Amp With Added Circuit Breaker For Overage Protection, Power LED
	Connections: Input Single L6-15 plug, Output 12 x IEC 60320C-13 Outlets
	US, Canada, & European UL Tested And Certified
	Mates Directly To rumeL, PDU (2 Connections Per PDU)
	Part Number: RI-PSTR-12x12-220
	Manual: RI-PSTR-12x12-220_Manual.pdf
	Cost: $350-In Production (Quantity Discounts Apply, Call For Quote)

Power Distribution Unit (PDU)-Horizontal Mount

Front

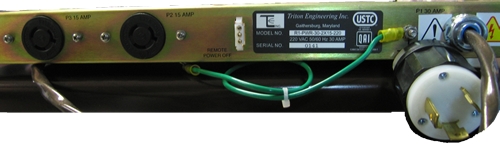

Back

Power Distribution Unit (PDU) Features

	Physical: 19" Rack Mount With 1U Height
	Power: 220V 30Amp Input With Twist Lock NEMA L6-30, Output 2x15 Amp L6-15 Twist Lock Receptacles
	Connections: Input Single 12' Plenum Rated Cable, Output Dual L6-15 Receptacles
	30 Amp Circuit Breaker On Input Main,15 Amp Circuit Breaker On Each Output
	Remote (Emergency) Off Capable
	US, Canada, & European UL Tested And Certified
	Part Number:R1-PWR-30-2x15-220
	Manual: R1-PWR30-2X15-220_Manual.pdf
	Cost: $1150-In Production (Quantity Discounts Apply, Call For Quote)
