GE-DR2D-D

GE-DR2D-D

Features

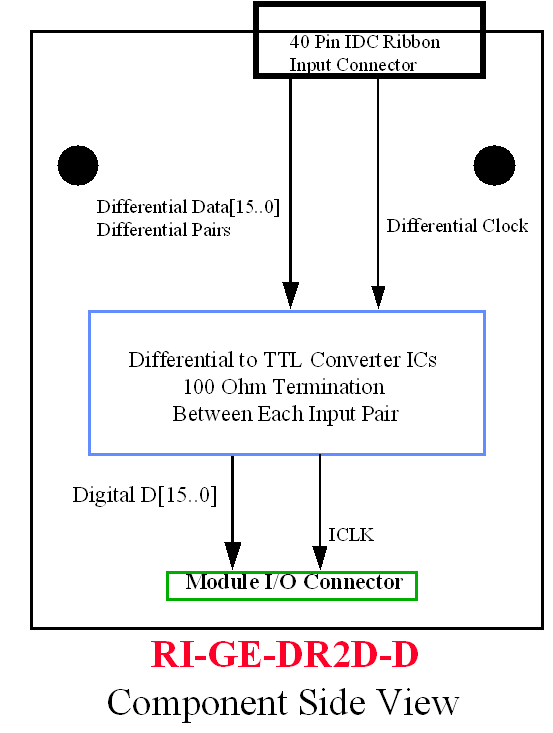

	16 Bit Differential Input Plus Differential Clock To Standard TTL Converter
	Works When Driven By 5V or 3.3V Powered Drivers, Differential 100 Ohm Termination
	Interface Connections Differential ECL, PECL, LVECL, LVPECL, LVDS, TTL
	Interfaces To Standard 40 Pin I/O Cables And Transition Panels, (SMS, SDN connections)
	Data Sheet (Below) Contains Connector/Pin Out Information
	Data Sheet: GIGEXD_DR2D_datasheet.pdf

Engineering Note: The maximum GIGEXD transfer rate over gigabit ethernet is 100 MBytes/Sec. The DR2D-D can be operated at rates up to 100Mhz with 16 bit data. Therefore, the effective rate of the DR2D-D is 200MBytes/Sec. Using the DR2D-D at maximum rates means that the user has to lower the effective rate of data transmission out the GIGEXD to the gigabit ethernet interface. This can be done in 1 of 3 ways:

1) The Digital Tuner within the GIGEXD can be used to tune, filter, and then decimate the data.

2) The input sample rate can be decimated-clocking the data at higher rates but throwing away samples to provide for a slower rate. Ex. clocking at 100Mhz but setting the GIGEXD front end decimation to 2

3) The input samples must be reduced in size (number of bits). The user can configure the GIGEXD to only acquire the most significant 8 bits of a sample.
