TGSDDSXD

RI(ICE)-TGSDDSXD



Features

bulletHooks directly to 10GbE fiber optic network. For data acquisition/playback from/to a network at full 10GbE Line Rates.
bulletSupports Bidirectional Network communications in one module.
bulletSupports ARP/RARP protocols for remote IP address receipt or user definable IP addresses.
bulletEncapsulates UDP & IP protocols in hardware.
bulletAbility to turn on or off VLAN tags.

            Data Acquisition (Input) Modes

bulletIGMP support for dynamic multicast join/leaves/membership reports
bulletUp to 8 or 16 (depending on Acquire Mode) IGMP Groups May Be Joined During a Single Acquisition
bullet "Raw" Bit Acquire Mode-Acquires ALL bits on the 10GBE Fiber
bulletRaw Packet Acquire Mode-Acquires ALL Packets Regardless of type Removes Inter-Packet Gap
bulletSDDS Packet Only Mode (Ethernet Header, IP Header,  UDP Header, SDDS Header, and SDDS Data) acquire mode
bulletSDDS Data & SDDS Header acquire mode-all other packet headers discarded
bulletSDDS Data  Acquire mode with-all other packet headers discarded
bulletHardware Endian Swapping Options For Incoming Acquisitions
bulletHardware support to check for dropped packets during a acquisition (missing sequence counters)
bulletHardware support for "Auto-Fill" for missed packets so that sample timing may be maintained.
bullet Support samples sizes: packed 4 bit data (2 4-bit samples per 8-bit slot), 6 bit data (zero padded to 8), 8 bit, & 10,12,14,16 bit (zero padded to 16).
bullet Ability to pull out time stamps from headers and provide offset/pointer to sample that is tied to that value.
bulletAbility to filter SDDS Parity Packets and Non-Standard SDDS Packets

            Data Playback (Output) Modes

bulletRaw Data Tx Mode-User Supplies SDDS Data Only, TGSDDSxD module will insert Network/SDDS  Headers For Transmit on 10GbE Fiber
bulletRaw Data Tx Mode-Automatic Insertion of Packet Count Sequence In SDDS header
bulletRaw SDDS Data Tx Mode-User Supplies SDDS Data & SDDS header Only, TGSDDSxD module will insert Network Headers For Transmit on 10GbE Fiber.
bulletUser Selectable/Programmable  Tx Packet Sample Rates Available Up To Full 10GbE Rates Via On-Board 10MHz Reference or User Supplied 10Mhz Reference
bulletUse of External 10MHz Reference Allows User To Lock To A Dedicated Site Reference For Coherent Playback of Multiple Modules.  If No Site Reference Is Available Then On-Board Reference Can Be Used To Generate Tx Sample Clock.

            Specialized Customer Modes

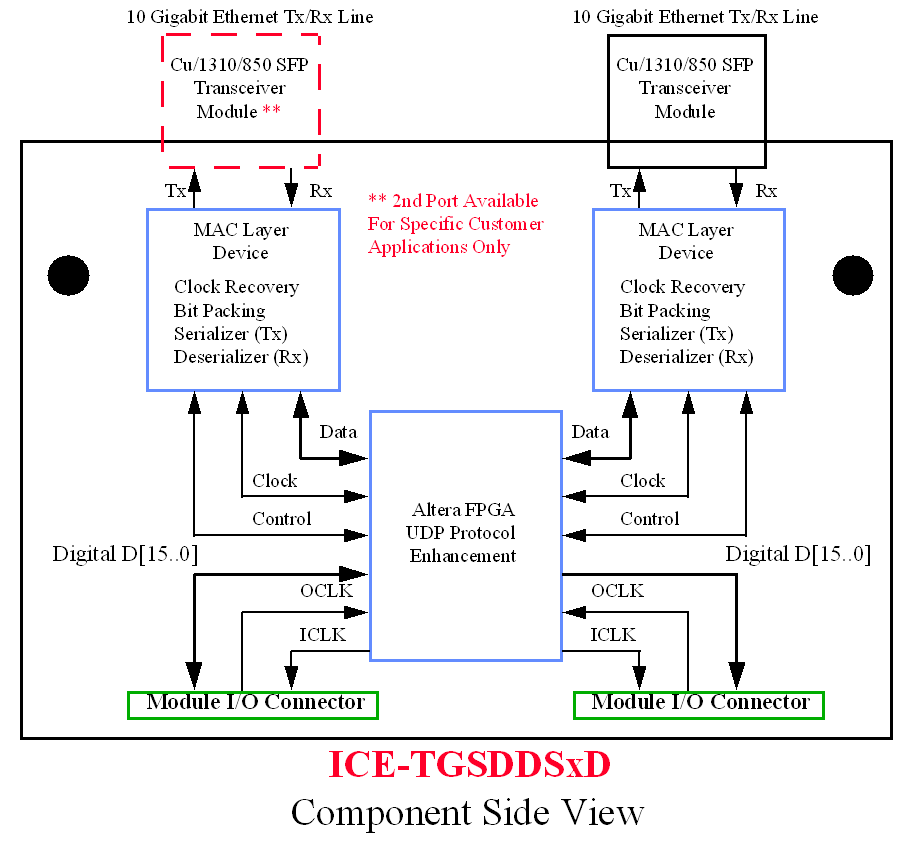

bulletNote-These modes require the use/purchase of a second Fiber Optic Transceiver SFP that is not included with the base unit (see diagram above). The use of the 2nd SFP allows for dual connections to separate 10GbE Fiber links.  The TGSDDSxD module operating in these Specialized Customer Modes is restricted to a total data throughput of 1.5GBytes/Sec. In other words, two 10GbE fiber optic links are supported and full data rates of both 10GbE links are supported onto the TGSDDSxD module. But, the combined TOTAL data rate of an acquisition from the TGSDDSxD module to an ICE PIC card may not exceed 1.5GBytes/Sec. using the modes below.
bullet HW supported ping-pong modes - interleaved into one stream/buffer with samples in time domain order
bulletTwo independent fiber acquisitions/playbacks to/from the separate fibers

            Software/Pricing

bulletX-Midas/Nextmidas and C user interfaces.
bulletCopper Interface:               P/N ICE-TGSDDSXD-Cu           (When Commercially Available)
bullet850 nm   Fiber Interface:   P/N  ICE-TGSDDSXD-850nm
bullet1310 nm Fiber Interface:   P/N ICE-TGSDDSXD-1300nm
bulletCost: $3500 (Prototypes Located At Customers For Testing, Production Sept. 2009)
bullet

For Use With PIC6 Cards Only
