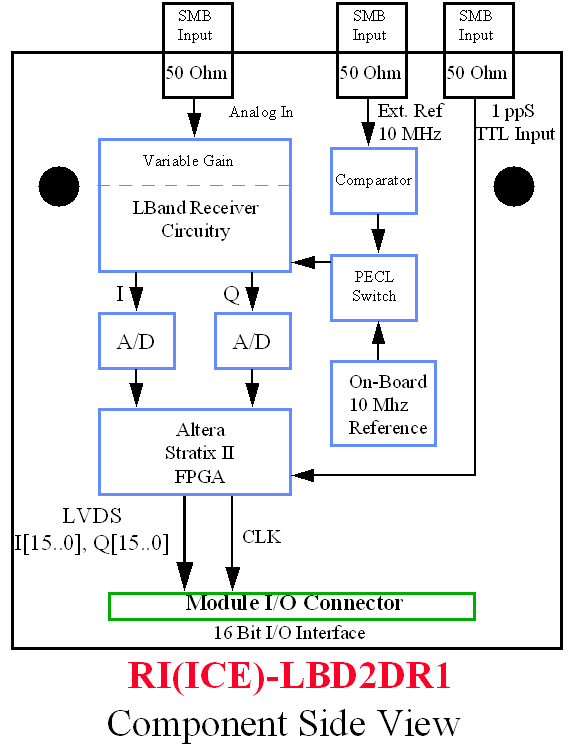

L-Band Receiver/Base Band Down Converter, Input 900MHz to 2200 MHz
 | Input Power Read Back Capabilities |
| Uses Analog Devices AD9640 Complex A/D
Converter For 14 Bit Complex Samples |
| 0-31dB Front End Attenuation Available |
| Input VGA For 80dB of Gain, (Input -77dBm to 10 dBm) |
| Output 1MHz to 65MHz Bandwidth |
| Multiple Clock Source-VCO Driven By 10Mhz External Reference or
10MHz On-Board Reference |
| External Connector For 1-ppS TTL Input-Stored In Bit 0 Of 16 Bit Word (14
Bit Data MSB Aligned) |
| For Use With ICE-PIC6 Series Of Cards or GIGEXD |
| Cost: $2750-In Production |
