Features

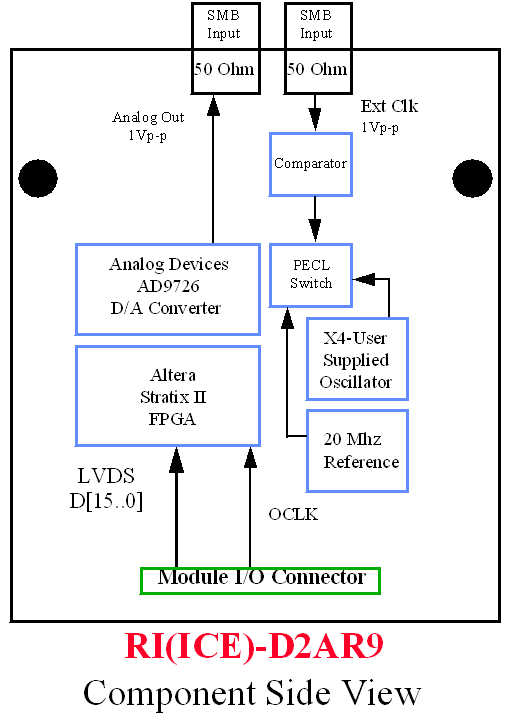

	Complement Of The RI(ICE)-A2DR9 And RI(ICE)-A2DR10
	One Analog Devices AD9726 16-bit 400MSPS D/A converter (AC coupled, 1Vp-p, 50ohm)
	Multiple Clock Source-Direct  External Clock  Drive Using 1Vp-p Input Signal, User Supplied On Board 14 Pin Package Oscillator, Clock Synthesizer From Ext. 20MHz Ref or On-board 20MHz Ref.
	For Use On the ICE-PIC5 Series of Cards
	Note: ICE-PIC5 Capable Of 500MByte/Sec Throughput.  D2AR9 Can Be Used With 16 Bit Data Up To 250MHz Or Up To 400MHz With 8 Bit Data With ICE-PIC5 500MByte/Sec Limit
	Cost: $1000-In Production
