Features

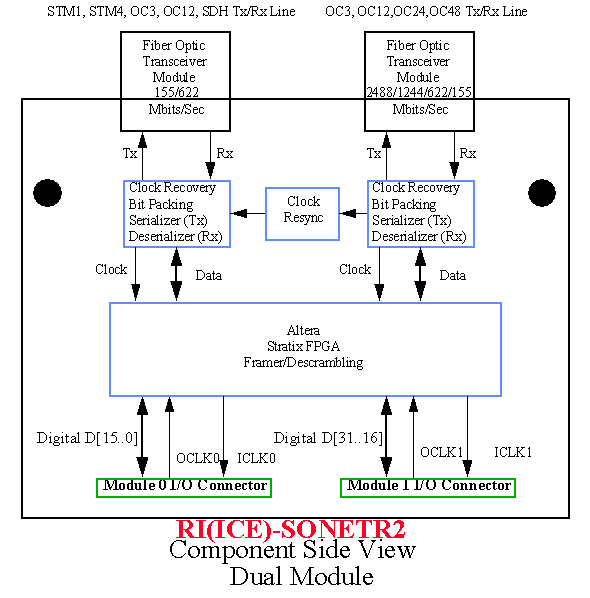

bulletDual Site Module-Uses Both I/O Ports Of ICE Hardware/rumeL signal transformation systems.
bulletSupports 2488.32, 1244.16, 622.08, or 155.52 MHz Line Rates
bulletBi-Directional, Interfaces To STM1, STM4, STM8, STM16, OC3, OC12, OC24, OC48, SDH Lines
bulletProvides Bit Packing, Frame Alignment, and Descrambling/Scrambling
bulletRx 1300nM, Tx at 1300nM
bulletActivating Rx Acquisition Provides For Feed Through To Tx Port Of Rx Data
bulletRaw Input of STM16 Data or Use Demux Function
bulletDemux Operation: Software Selection Of Single STM1 Or STM4 From  Raw STM16 Data Acquisition
bulletX-Midas/Nextmidas and C user interfaces.
bulletCost: $3500 (In Production )

Jumper Settings For Power/Ground Connections

Transmit Power Supply **

Jumper

Enable Tx Power*

Disable Tx Power
J1 1 & 2 SHORT 1 & 2 OPEN

J2

1 & 2 SHORT

1 & 2 OPEN

*  Transmit Power Supply: Enables Power Supply For Tx Operation. Default Setting When Delivered

Note: Transmit Power should be Disabled when transmit capability is not being

           used to avoid laser over heating and shutdown.  Disabling Tx laser power supply

           when not in use will prolong the life of the laser for the Tx module.
