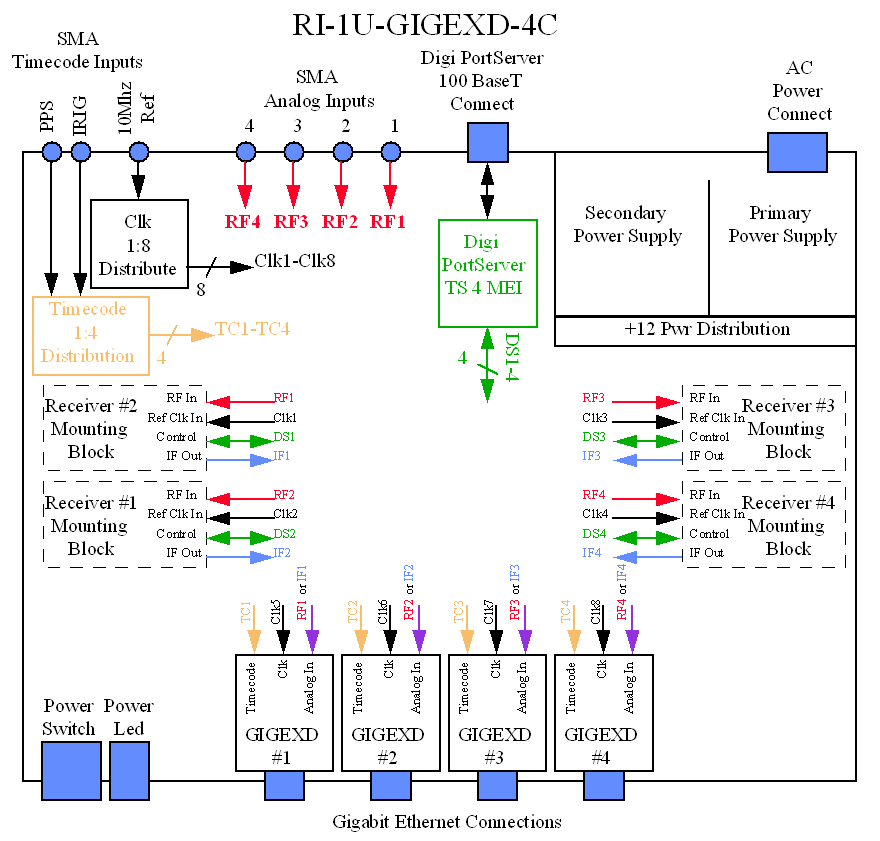

 | 1U form factor chassis, Dimensions: 24"x19"x1.7" |
| Includes 26" Rack Slides |
| Redundant Power Supplies, Single 110/220 AC Plug In Rear |
| Shielded Coax Provided For ALL Internal Signals, Ridged Shielded Coax
Provided For All Analog Signals |
| One External IRIG Timecode Connection For Timecode to All 4 Internal
GIGEXD Units-Internal 1 to 4 Timecode Signal Distribution System. |
| Internal Mounting Brackets For Up To 4 DRS SI-8614 Nanoceptor™
Receivers, 4 Zeta & Associates Inc. "Zeta" Receivers, or
Mix/Match of Both. External Analog Connections At Rear Of Chassis. |
| Internal 1:4 Digi Port Server, 100BaseT To Serial Conversion For
Communication To Above Receivers. All Cabling (Serial Cables, Ethernet
Cable) Included. External 100BaseT Connection On Back Of Unit For Digi
Communication |
| Receiver Integration Done By User. All Appropriate Cabling For Connections
Included Inside Of Chassis-Including Power, RF Signal, Clock, IF Out, and
Serial Configuration |
| GIGEXD Units May Be Connected To Receivers Or Directly To RF Input.
Receivers Do NOT Have To Be Added To The Unit If End User Does Not Desire To
Use Them. |
| One Year Warranty |
| Cost: $8000, In Production (Cost For Bare Chassis & Internal
Connections, Does Not Include GIGEXD or Receiver Units) |
| Cost Fully Populated With GIGEXD Units: $8000 + 4 x $3000 = $20000 |
| (If GIGEXD Units Purchased With Chassis, Then Integration Of GIGEXD Units
Will Be Done At rumeL, Inc. Facilities Prior To Shipping And Is Free!) |
